Guide to the 5/64th Brad Point Drill Bit: Specifications, Uses, and Shank Options

Overview

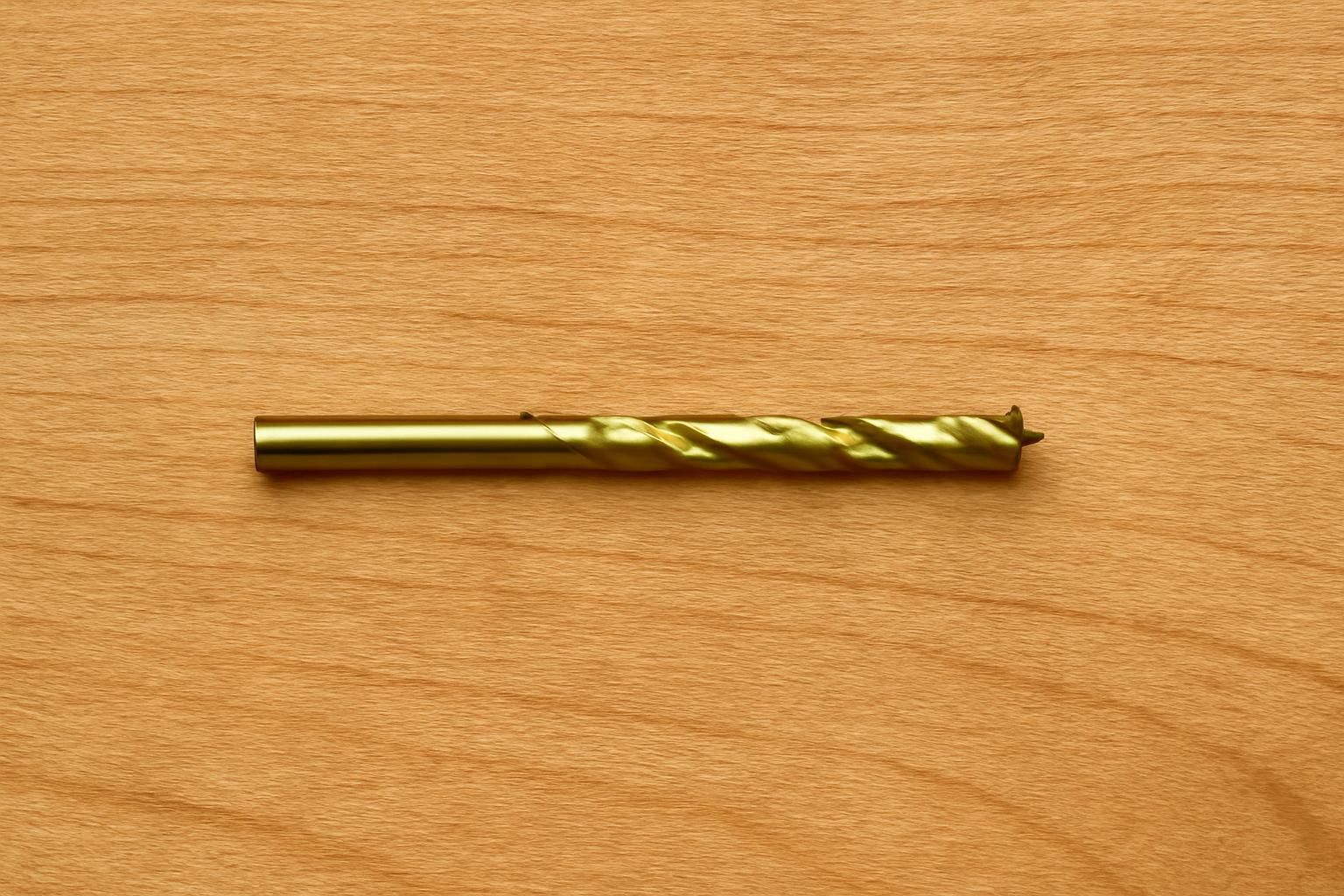

A 5/64-inch brad-point drill bit is a small wood-focused bit with a nominal cutting diameter of 0.0781 inch, per the Fuller product listing at McFeely’s. Before buying, verify three things: the exact diameter (5/64 inch is close to, but not identical to, 2 mm), the shank format your drill or holder accepts, and whether one replacement bit or a set fits your longer-term needs.

The brad-point geometry is the reason to pick this bit over a standard twist bit for the same size. The McFeely’s Fuller listing states that the brad point “accurately positions the hole and prevents the bit from walking,” which matters most at small diameters where a wandering tip ruins alignment. The documented offers split into two shank formats: a straight round shank on the Fuller bit and a power-groove shank on the Insty-Bit version sold through Woodworker’s Hardware. Sets from Fuller begin their fractional range at exactly 5/64 inch, so the size is available in every common package format. The sections below cover the documented specifications, geometry, material claims, configuration choices, and the operating guidance the evidence actually supports.

5/64-Inch Size and Regular-Length Specifications

The regular-length Fuller 5/64-inch brad-point bit has a fully documented specification block, and it is the most reliable reference for verifying a replacement. According to the McFeely’s listing, the bit is high-speed steel (HSS) with a decimal equivalent of 0.0781 inch, and it is sold as a single bit. Highland Woodworking’s Fuller HSS brad-point page corroborates the same 1-inch flute and 2-inch overall length for the 5/64-inch size.

The documented specifications for the regular-length Fuller bit are:

• Cutting diameter: 5/64 inch (0.0781 inch decimal equivalent), per McFeely’s
• Flute length: 1 inch; overall length: 2 inches, per McFeely’s and Highland Woodworking
• Material: high-speed steel, uncoated finish, per McFeely’s and the Amazon Fuller listing
• Shank: 5/64-inch round, smooth, straight, per McFeely’s and Amazon

One detail worth noting on this bit: the shank diameter equals the cutting diameter, 5/64 inch. That means any chuck or collet must close down to this very small size, which is not true of every drill holder. Do not assume this shank spec applies to other 5/64-inch offers; the Insty-Bit version uses a different power-groove shank format, covered later.

On construction, keep the attribution boundaries straight. The Fuller bit is documented as HSS, which supports longer cutting-edge life than untreated steel. A separate product family, Rockler’s imperial HSS brad-point bits, describes a hardened tip that resists wear and heat plus a softer shank that absorbs drill torque to prevent breakage. That two-hardness construction is a Rockler family description, not a verified feature of the Fuller or Insty-Bit 5/64-inch offers.

Is 5/64 Inch the Same as 2 mm?

No, not exactly, but the difference is small enough that charts and listings routinely treat them as equivalent. The math is straightforward: 5 ÷ 64 = 0.078125 inch, and 0.078125 × 25.4 = 1.984 mm, so a true 5/64-inch bit is about 0.016 mm under 2 mm. A drill bit RPM chart from Tightwad Workshop lists 5/64 as 0.0781 inch and 2.0 mm in the same row, and the Amazon results page for the Fuller bit shows a Harfington product labeled “2mm(5/64"),” which reflects the rounded marketplace convention rather than exact equality.

Whether the roughly 0.016 mm difference matters depends on the fit requirement, and none of the supplied sources publishes an acceptable substitution tolerance. For general wood drilling, the rounding convention exists because the gap rarely shows. For a precision fit, a press-fit pin, or hardware with a specified hole size, check the hardware or drawing specification directly rather than assuming the two sizes are interchangeable.

How the Brad Point Improves Hole Accuracy

A brad-point bit splits the drilling job between two features, and each solves a different accuracy problem. The center brad handles positioning. As the Amazon Fuller listing explains, the tip of a brad-point drill lets you align the center of the hole without drifting, unlike a v-point or regular twist bit. The McFeely’s page states the same outcome from the manufacturer’s side: the bit accurately positions the hole and prevents walking. At 5/64 inch, this matters more than at larger sizes, because a standard twist bit this thin has little resistance to skating across the surface before it bites.

The outlining spurs handle edge quality. The Fuller fractional set listing describes the mechanism: the spurs shear the wood grain and leave a clean edge around the opening of the hole, eliminating the need for sanding, and they continue shearing while drilling to produce an accurately sized hole. Highland Woodworking confirms the same pairing of cleaner edge and accurate hole size.

The same set listing adds a through-hole benefit: in most woods, the spurs also help produce a cleaner edge when the bit exits the backside of the workpiece. In practical terms, the brad places the hole where the layout mark is, and the spurs cut fibers cleanly instead of tearing them, at both the entry and, in most woods, the exit.

Suitable Materials and the Sheet-Metal Caveat

Wood is the best-supported material for this bit, with hardwood explicitly documented. The McFeely’s Fuller listing lists applications as clean holes in hardwood, plastics, nylon, fiberglass, and most man-made materials. The Amazon Fuller listing frames the regular-length line as designed for clean holes in wood, plastics, and sheet metals. So for wood, plastics, and common man-made sheet goods, the documented product claims align.

One concrete, documented application shows where this specific size gets used: the Tool Croze HSS drill reference lists a cabinet-door hinge project drilled at 5/64 inch in hardwood at 1,800 RPM with a note to use a brad-point bit. Treat that as one bounded example, not proof that 5/64 inch is the correct pilot size for every hinge, screw, or hardware item. Hardware makers specify their own pilot sizes, and those specifications control.

The sheet-metal claim needs careful handling. Both Fuller listings name sheet metal (McFeely’s says “wood, plastic, and sheet metal”; Amazon says “sheet metals”), so the claim is attributable to the exact Fuller product. However, the supplied evidence does not establish sheet-metal drilling as a general brad-point capability. Rockler’s brad-point family, for comparison, is described around wear resistance and torque absorption without a metal-application claim, and no source in the corpus explains how the pointed brad and outlining spurs behave in metal versus the split points typical of metal-drilling bits. The defensible reading: if you buy the Fuller bit, the manufacturer’s listings state sheet-metal suitability for that product; do not extend the claim to other brands’ brad-point bits, and do not treat brad points as a general metal-drilling category. For anything beyond thin sheet stock, a bit designed for metal is the safer assumption.

Straight Shank, Power-Groove Shank, or Set?

The documented 5/64-inch options come down to three configurations, and the deciding factor is your drill holder plus how many sizes you expect to need. The Fuller individual bit uses a 5/64-inch round straight shank (McFeely’s), so it needs a chuck or collet that closes to that very small diameter. The Insty-Bit 81405 is an HSS brad-point bit with a power-groove shank, sold individually in a line of 16 sizes. Fuller also sells fractional sets that start at exactly 5/64 inch, including a 28-piece HSS set spanning 5/64 to 1/2 inch and a 20-piece set covering 5/64 to 3/8 inch.

The matrix below compares only the attributes the sources document. Prices and stock change too often to be useful comparison inputs, so they are excluded.

Attribute	Fuller individual bit	Insty-Bit individual bit	Fuller fractional sets
Shank format	5/64 in. round, smooth, straight (McFeely’s)	Power-groove shank (WW Hardware)	Not published in the supplied sources
Material	High-speed steel, uncoated (McFeely’s, Amazon)	High-speed steel (WW Hardware)	High-speed steel (Fuller set listings)
Documented dimensions	0.0781 in. dia., 1 in. flute, 2 in. overall	Not published in the supplied sources	Set ranges: 5/64–3/8 in. (20 pc) or 5/64–1/2 in. (28 pc)
Best fit	Chuck or collet that grips a 5/64 in. shank	Grooved-shank holder system	Buyers needing multiple fractional sizes
Verify before buying	Chuck closes small enough for 5/64 in. shank	Shank dimensions and quick-change holder compatibility	Whether the range covers your future sizes

One unresolved compatibility point deserves emphasis. The Insty-Bit listing documents the power-groove shank format but does not state its dimensions or confirm compatibility with common 1/4-inch quick-change holders. If you run a quick-change system, confirm fitment with the seller or the Insty-Bit documentation before ordering rather than assuming the shank matches your holder.

Individual Bit or Multi-Size Set?

Buy the individual bit if you are replacing a broken 5/64-inch bit or drilling one specific hole size; buy a set if your work regularly spans small fractional sizes. The individual Fuller bit is documented as a single-piece purchase on the McFeely’s listing, which suits a targeted replacement with no extra spend on sizes you already own.

The sets make sense when 5/64 inch is the bottom of a range you use. Fuller’s 28-piece set runs from 5/64 to 1/2 inch, and the 20-piece fractional set covers 5/64 through 3/8 inch in 64th-inch steps at the small end. Cabinet and furniture work often calls for several adjacent small sizes, and a set removes the need to match individual replacements later. Prices and availability for all of these formats change, so compare current listings at order time rather than relying on any published figure.

Operating Speed and Technique: What the Evidence Supports

No manufacturer in the supplied evidence publishes an exact operating procedure for the 5/64-inch Fuller or Insty-Bit products, and the available third-party speed references disagree, so the honest answer is a bounded range rather than one universal RPM. The Tightwad Workshop RPM chart lists 3,000 RPM for a 5/64-inch (0.0781 inch, 2.0 mm) HSS bit in hardwood, softwood, aluminum, and brass, with acrylic at 2,500 RPM. The Tool Croze project reference lists 1,800 RPM for a 5/64-inch brad-point bit drilling cabinet-door hinge holes in hardwood, with a 0.006 feed value, and gives hardwood a general cutting-speed range of 150–250 surface feet per minute. The two figures come from different chart contexts, and neither is an exact-product manufacturer recommendation. In practice, both references put a small HSS bit in hardwood in a fast-but-controlled band; starting toward the lower reference and increasing only if the bit cuts cleanly is the conservative reading, not a sourced rule.

For deeper holes, generic HSS guidance applies. The Zhonghuan Tools RPM chart advises reducing RPM by 20–30% for holes deeper than three times the bit diameter and using peck drilling to clear chips. For a 5/64-inch bit, 3 × 0.078 inch is only about 0.23 inch of depth, so most holes drilled with the full 1-inch flute qualify as deep holes under that rule, which makes chip clearing routine rather than optional at this size.

Two safety points are documented on the Fuller product page itself. The McFeely’s listing carries a warning that drilling, sawing, sanding, or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer, and advises avoiding inhalation or using a dust mask or other safeguards. It also states that safety glasses or goggles with side shields must be worn where flying objects, fragments, and particles are a hazard.

What remains unverified: exact feed pressure for this bit, a specific withdrawal interval, maximum practical depth, and a single manufacturer-endorsed RPM. Where the job demands tighter operating parameters than the ranges above, get them from the bit manufacturer for the exact product rather than from generic charts.
